Integrated Hardware and Software

SWIN IoT's smart water and electric meters are intelligent devices with a property management system. The self-developed smart hardware perfectly integrates with the smart landlord management software.

Smart landlord system

A house rental transaction and management platform based on the Internet of Things (IoT), providing a one-stop solution for landlords. It deeply addresses industry pain points and enables rapid updates and iterations.

Make Leasing

Smarter

Product Detail

Share to：

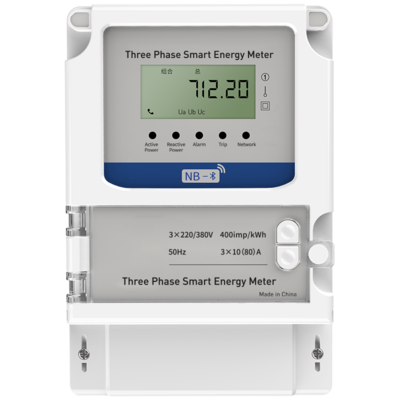

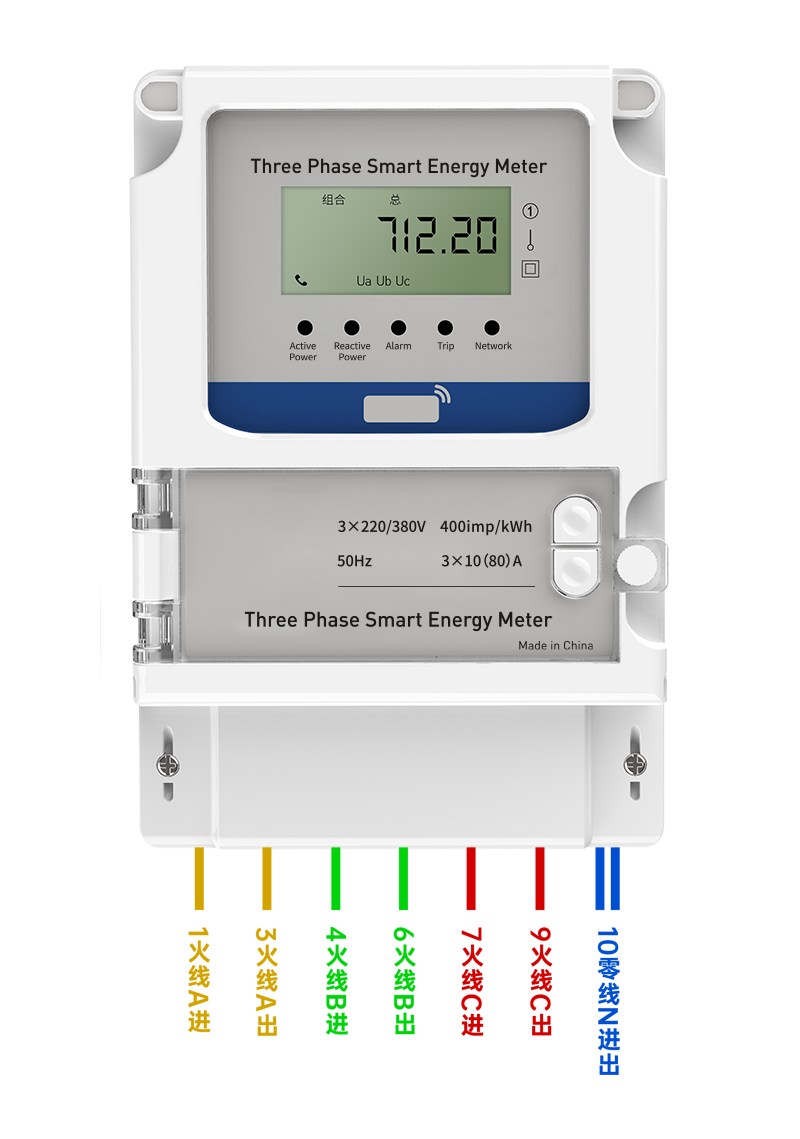

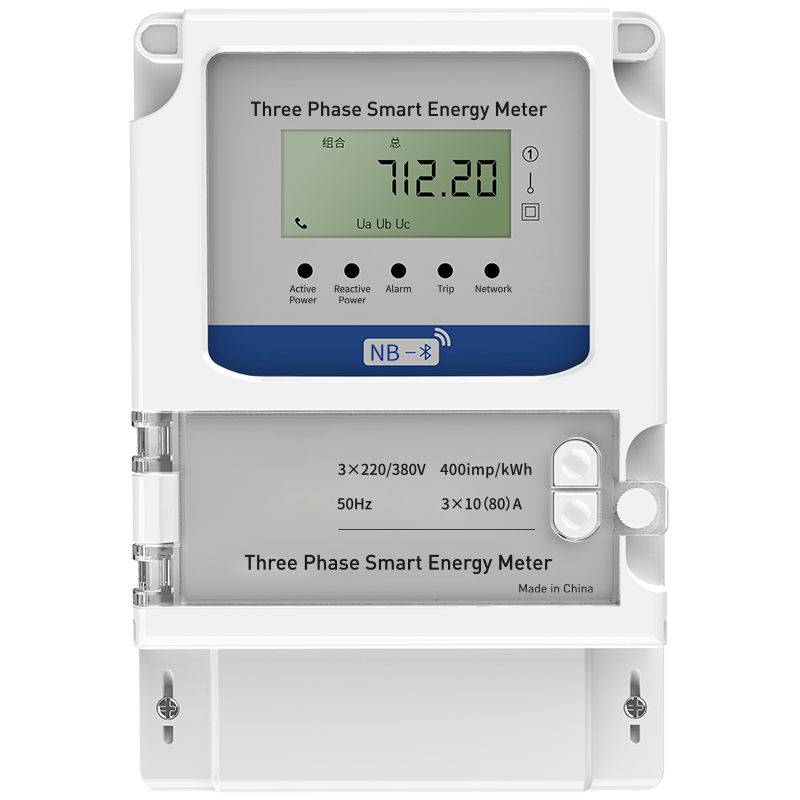

Three Phase Smart Electricity Meter-SS

Online prepayment, automatic power cut-off for arrears
Remote precise metering, remote power on/off
Low power reminder
Temporary overdraft electricity usage
Communication:485,NB,WIFI,4G

Main Functions

Specifications

Connection Diagram

Meter Dimensions

Fee Control Function	Realizes fee remote control function through Swin IoT system (operations such as account opening, recharging, electricity purchase,electricity refund,etc.)
Real-time Alarms	Overcurrent Alarm Loss of Current Alarm No Current Alarm Phase Loss Alarm Overload Alarm Voltage Imbalance Alarm Current Imbalance Alarm Total Power Factor Below Lower Limit Voltage Reverse Sequence Alarm Current Reverse Sequence Alarm
Indicators	Pulse Indicator Alarm Indicator Trip Indicator Communication Indicator
Installation Way	Wall-mounted

Current	3*10(80)A
Voltage	3*220/380V
Frequency Range	45Hz~65Hz
Electricity Meter Constant	1000imp/kWh
Operating Frequency	50Hz
Power Consumption	≤0.5VA
Normal Operating Temperature	-20℃~70℃
