Three Phase Smart Electricity Meter

Online prepayment, automatic power cut-off for arrears
Remote precise metering, remote power on/off
Low power reminder
Overload safety protection
Public area intelligent sharing
Communication options: 485,NB,WIFI,4G
Main Functions
Specifications

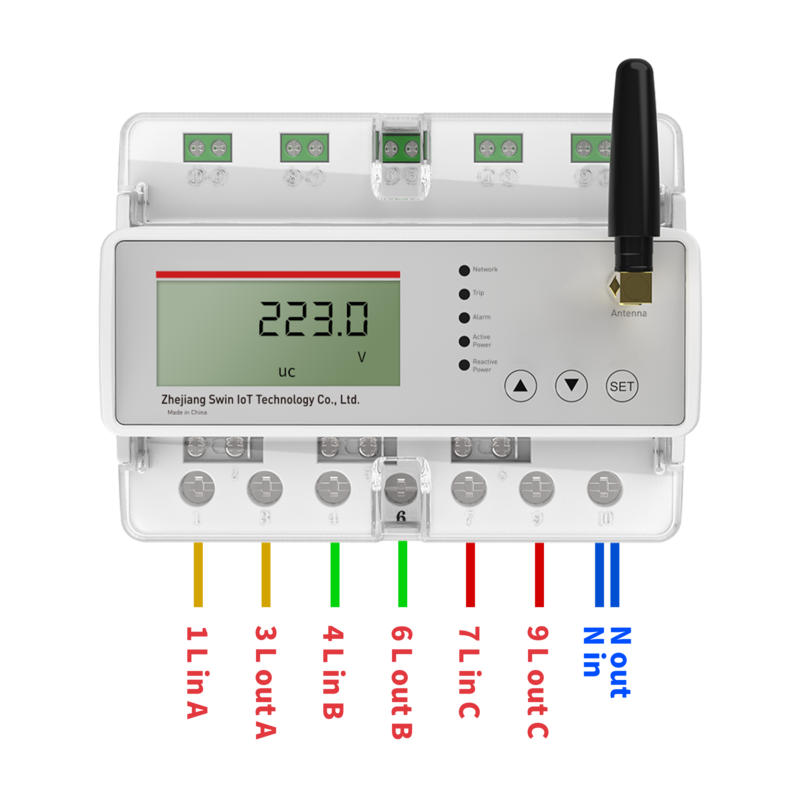

Connection Diagram

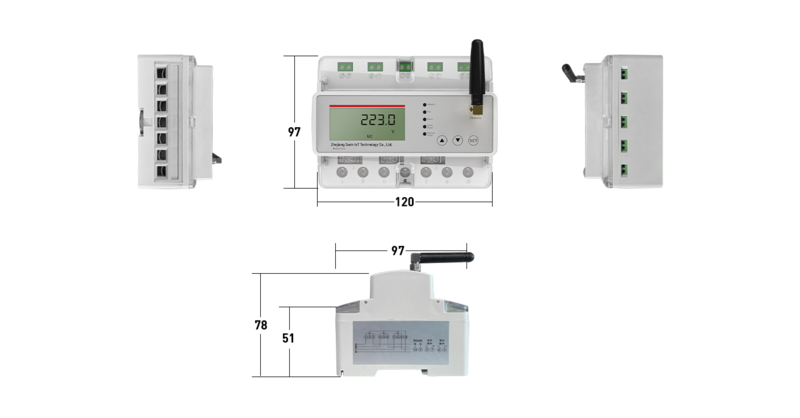

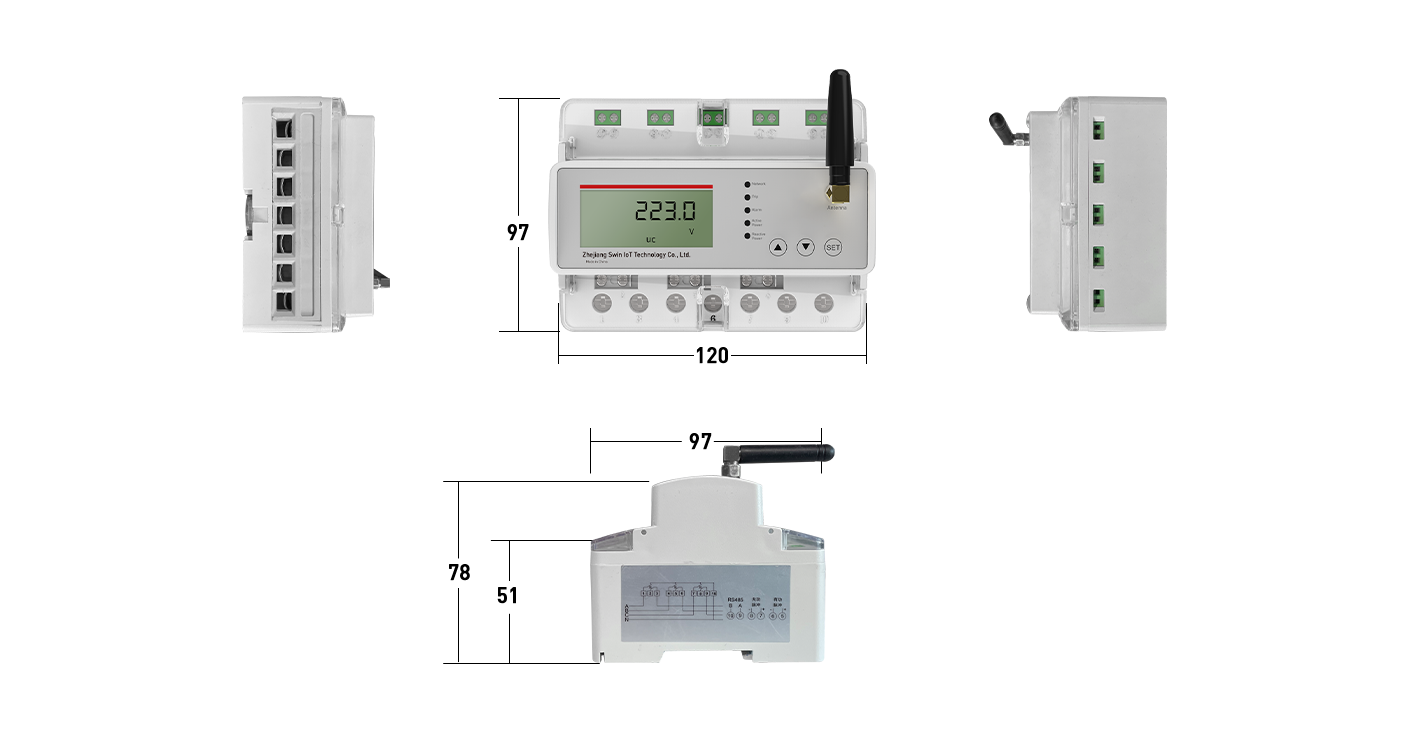

Meter Dimensions

Fee Control Function

Realizes fee remote control function through Swin IoT system (operations such as account opening, recharging, electricity purchase, electricity refund,etc.)

Real-time Alarms

Overcurrent Alarm

Loss of Current Alarm

No Current Alarm

Phase Loss Alarm

Overload Alarm

Voltage Imbalance Alarm

Current Imbalance Alarm

Total Power Factor Below Lower Limit

Voltage Reverse Sequence Alarm

Current Reverse Sequence Alarm

Indicators

Pulse Indicator

Alarm Indicator

Trip Indicator

Communication Indicator

Installation Way

Rail-mounted or wall-mounted


Current

3x10(80)A

Voltage

3x220/380V

Frequency Range

45Hz~65Hz

Electricity Meter Constant

400imp/kWh

Operating Frequency

50Hz

Power Consumption

≤0.5VA

Normal Operating Temperature

-20℃~70℃

Installation Rail Dimensions

35mm
